Product information

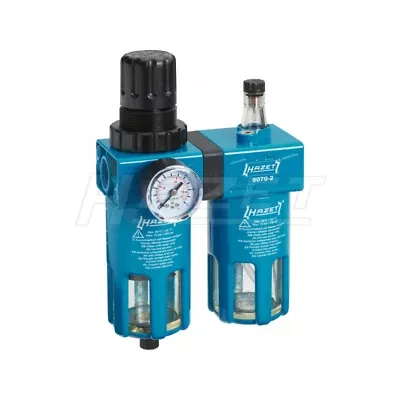

Dual, consisting of filter-pressure reducer, oil-mist lubricator and manometer
Air inlet thread 20.67 mm (1⁄2″)
Air flow at 6.3 bar: 5000 Nl/min
Capacity of filter-pressure reducer: 50 ml
Capacity of oil-mist lubricator: 170 ml
Connection manometer: 3.2 mm (1/8″)
Max. pressure: 16 bar (1/2″ and 3/8″) 12 bar (1/4″),
max. working pressure: 12 bar (1/2″ and 3/8″) 10 bar (1/4″)
Pressure indication: 0.5 – 12 bar
Filter grade: 10 µm
Recommended lubricant: class F (Sprinter ADVP 22)
Air connection inlet: Inside thread (IG) 20.67 mm (1/2″)
Air connection outlet: Inside thread (IG) 20.67 mm (1/2″)
Net weight: 1.38 kg
Temperature range: -10°C – 55°C
